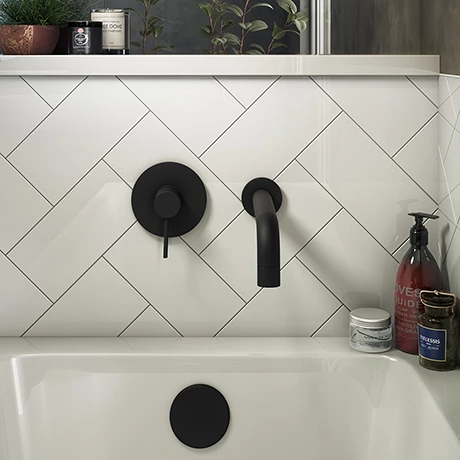

Arezzo Matt Black Round Concealed Manual Valve + Bath Spout

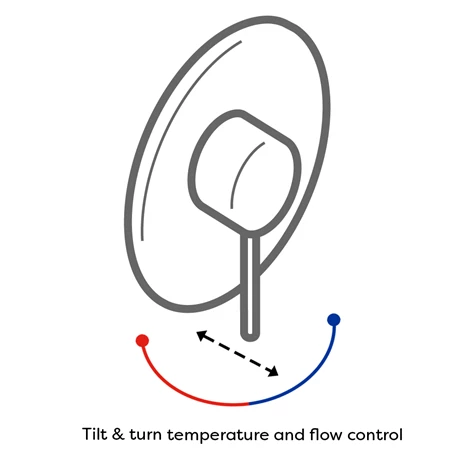

The contemporary Arezzo matt black 2 hole wall mounted concealed manual valve with bath spout, create a modern clean feel in your bathroom with this minimalist styled luxury wall mounted bath filler. Characterised by its stylish round lever handle which controls temperature and flow. Simply lift lever to introduce flow, adjust left or right to set temperature. Manufactured from solid brass with a luxury matt black finish and comes with a 5 year guarantee.

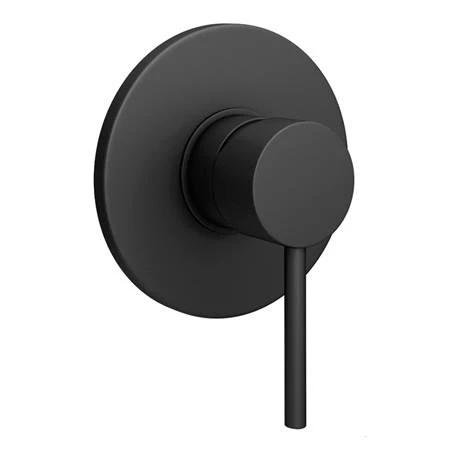

Manual Valve Details

• Diameter: 110mm
• Style: Modern
• Colour/Finish: Matt Black
• Valve Handles: Round
• Brass Internals
• Single Lever
• Wall Mounted
• Concealed
• Round Faceplate
• For use with 1 Outlet
• 1/2″ Inlet Connection
• Non thermostatic mixer valve
• Ceramic disc control for smoother operation
• Suitable for use with all water systems with an operating pressure 0.5 bar up to 5 bar
• Hot water temperature 55 to 85 Degrees
• Should a pump be required we recommend a universal or negative head pump
• Please note: Valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.

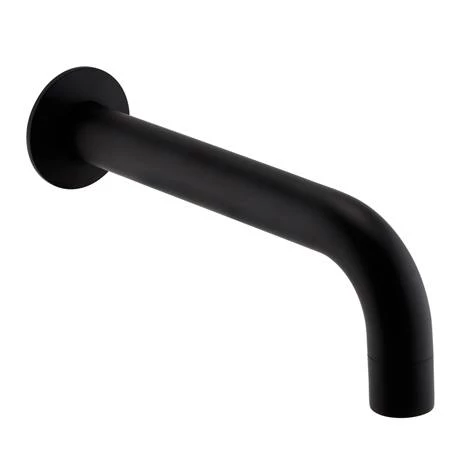

Wall Mounted Bath Spout Details

• Diameter: 28mm
• Width: 60mm
• Projection: 222mm
• Style: Modern
• Wall Mounted
• Product Type: Built-in Spout
• Colour/Finish: Matt Black
• Material: Brass Internals
• Minimum Pressure Required: 0.5 bar
• Pipe Size: 22mm (3/4″ BSP)

Flow Rates (l/min)

• 0.5 bar – 10.1
• 1 bar – 14.1
• 2 bar – 20.1
• 3 bar – 24.9
• 4 bar – 28.3
• 5 bar – 31.9

Pictures shown are for illustration purposes only.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Arezzo Matt Black Round Concealed Manual Valve
(1) Arezzo Matt Black Wall Mounted Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
